DIN Rail Mini Circuit Breaker

  • MCB (Earth Leakage) WSB1LE-63
  • MCB (Earth Leakage) WSB1LE-63
  • MCB (Earth Leakage) WSB1LE-63
  • MCB (Earth Leakage) WSB1LE-63
  • MCB (Earth Leakage) WSB1LE-63
MCB (Earth Leakage) WSB1LE-63 MCB (Earth Leakage) WSB1LE-63 MCB (Earth Leakage) WSB1LE-63 MCB (Earth Leakage) WSB1LE-63 MCB (Earth Leakage) WSB1LE-63

MCB (Earth Leakage) WSB1LE-63

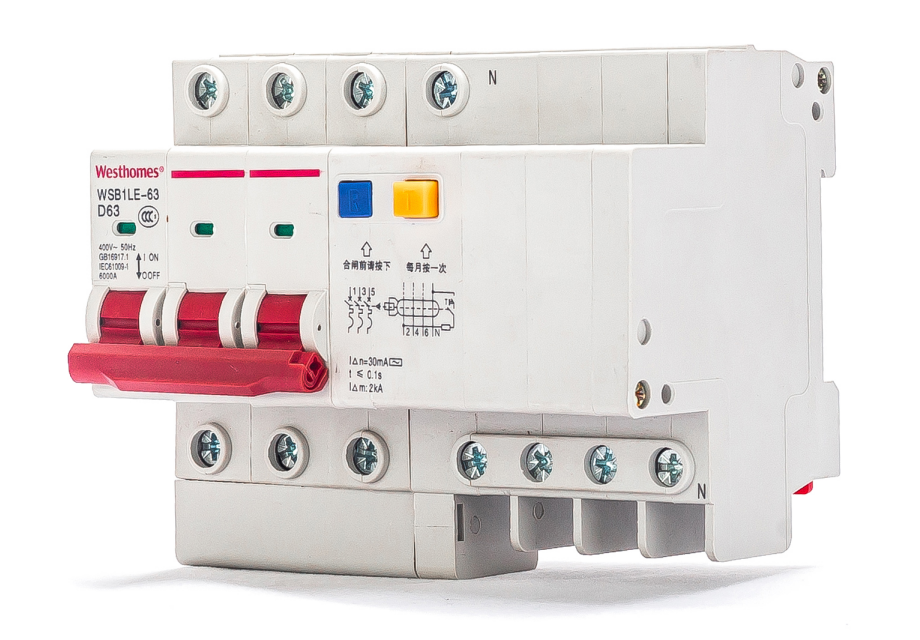

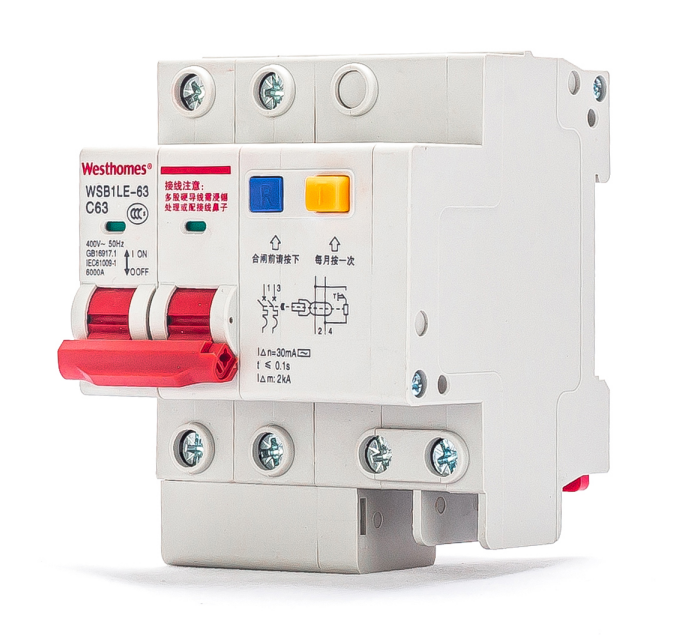

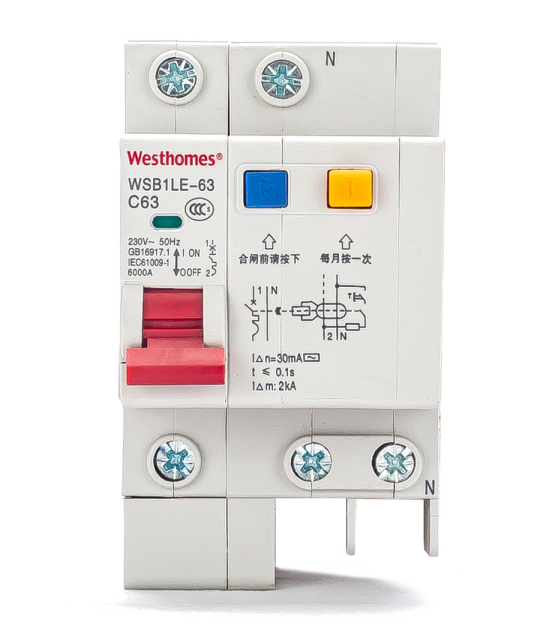

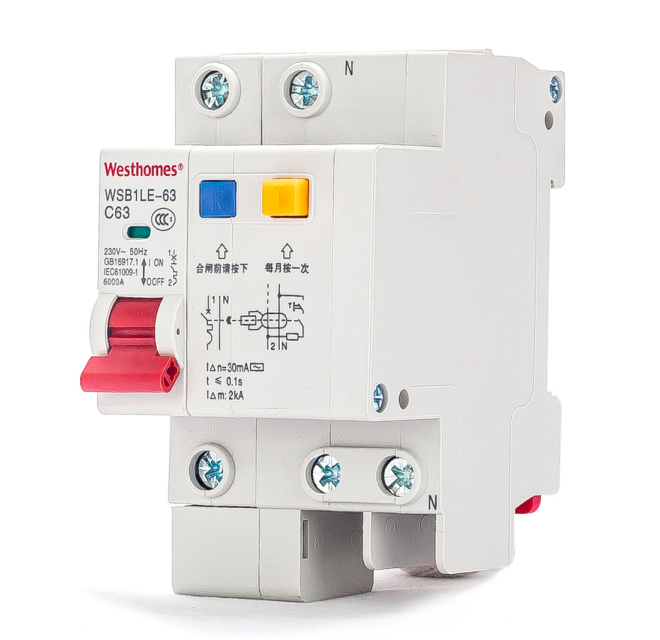

  • Product ID: Miniature (Earth Leakage) Circuit Breaker WSB1LE-63
  • size: 1P+N, 2P, 3P, 3P+N, 4P 30mA
  • INQUIRY

Key Information

WSB1LE-63

Pole: 1P+N, 2P, 3P, 3P+N, 4P

Voltage: AC230V/400V

kA: 6kA(N); H:10kA(H)

Amps: 6, 10,16, 20, 25, 32, 40, 50, 63

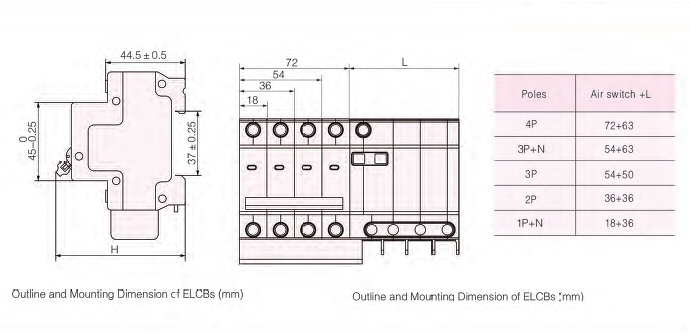

Width: 18, 36, 54, 72mm

General

WSB1LE-63 Miniature Earth Leakage Circuit Breaker (ELCB) is applied in circuit of AC50/60Hz, rated voltage AC230V/400V, rated current upto 63A, for protection of electric shock and electricity leakage of equipments, also with functions of overloading and short circuit protection, for infrequent changeover of the circuit under normal circumstance. The product is widely used at places of hotels, houses, industrial and mining, and buildings similar.

The product meets standards of IEC/EN60947-1, GB16917.1 and GB16917.22.

Main technical parameters

ModelRated voltage (V)Rated current In (A)Rated residual action current I△n (mA)Rated residual non-action current I△no (mA)Max breaking time (s)Rated short circuit breaking capacity (A)Type of instantaneous releaser
I△n2I△n5I△n
WSB1LE-63AC230
AC400
6, 10, 16, 20, 25, 32, 40, 50, 6330150.30.150.044500C
WSB1LE-63N6000
WSB1LE-63H10000


Rated current In (A)Test currentInitial stateTest timeTest resultRemarks Rated residual action current I△n (mA) Rated residual non-action current I△no (mA)Limit undriven time 5I△n (s)
6, 10, 16, 20, 25, 32, 40, 50, 631.13InColdt≤1hNot tripping
30150.04
1.45InThermalt<1hTripping Current rises to the set value in 5s steadily
2.55InCold1sTrippingIn≤32A
1sTrippingIn>32A
C5InColdt≤0.1sNot trippingConnect the current by closed auxiliary switch
10InColdt<0.1sTripping
